35C50 Airmix® Paint Pump
The 35C50 Airless® paint pump delivers constant, pulse-free material flow for consistent, high-quality industrial finishing results. Built for long-term reliability in demanding production environments, it supports fast colour changes with reduced solvent consumption to improve efficiency and minimise waste. Its simple, robust design reduces maintenance requirements and downtime, helping operators maximise productivity while keeping operating costs under control.
From £2,773.35 Exc VAT
Select Model:
View our list of spare parts for this machine, click here.
Description
Designed for long-lasting industrial use, this pump delivers reliable performance, fast colour changes and reduced solvent consumption. Its simple, robust design minimises maintenance requirements while providing consistent fluid delivery across a wide range of coating applications.
Performance

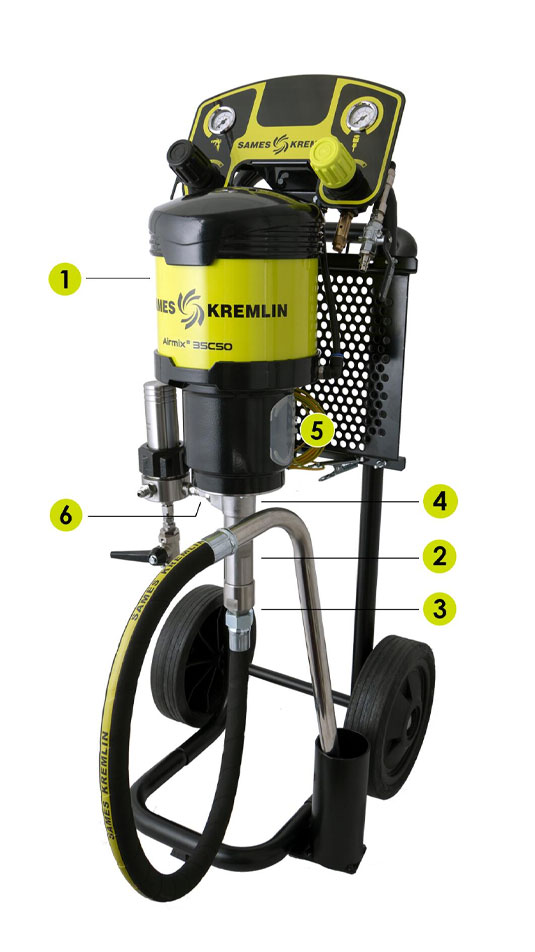

1 – Quiet and balanced air motor for constant delivery
1 – There is minimal pulsation due to quick air motor change over at low air pressures
2 – Stainless-steel fluid section compatible with a wide range of materials including water-based paints
3 – Designed to eliminate dead zones for quick color changes
♦ – Pulse-free for a superior finish
♦ – Able to flush and prime at very low air pressures (0.6 bar/8.5 psi)
Productivity
3 – Large foot valve to handle high viscosity materials up to 5,000 cPs – carbide seat
4 – Small fluid section, minimal material loss during color changes
5 – Closed construction decreases the risk of injuries and protects the lubricant from external contamination
5 – Leak indicator weep hole for fast visual inspection
5 – Easy rotating outlet fitting to fit various configurations
Sustainability
1 – Stall-free Differential Air Motor won’t ice up
3 – Easy to service with direct access to the suction valve
4 – Single piece built-in cartridge with no dead zone
6 – Easy coupling for a quick disassembling
♦ – Mobile seal located on the piston ensures the cleaning of the fluid section internal wall while the pump is in operation
♦ – Low maintenance, no external air distributor assembly. 45% fewer parts vs competition
♦ – Triple chrome-plated piston parts compatible with most materials
♦ – Magnetic reversing valve to eliminate pump surge
♦ – Reduced spare parts: 50% fewer parts vs competition
The 35C50 Airmix® paint pump will deliver excellent performance and outstanding benefits because of our proven pumping technology. With a powerful air motor, the 35C50 can feed up to (2) Airmix® or (2) SFlow™ Airspray spray guns. It can handle material viscosities from 20 cps up to 5000 cps with very low air consumption. It comes with an optimized volume fluid section for fast colour changes with minimal material loss.

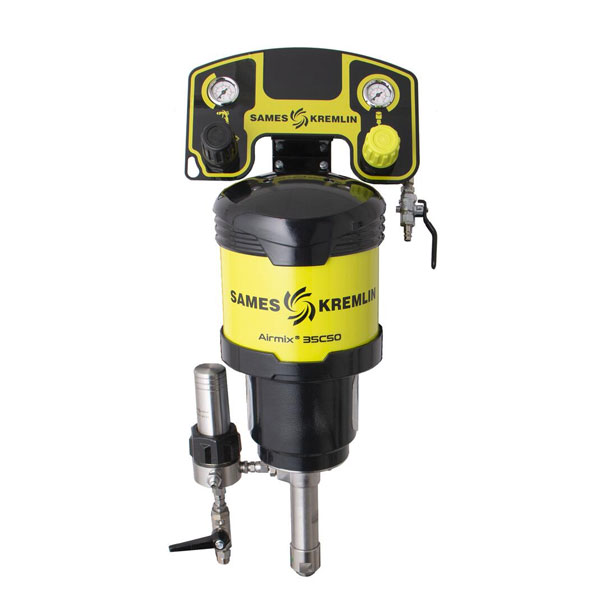

The 35C50 Airmix® paint pump packages are available in wall-mount versions with cart mounting as an option. Packages are available with (1) Xcite™ 200 bar Airmix® manual spray gun equipped with a 12.114 tip and 7.5 m (25ft) air and fluid hoses. An Airless® version with the SFlow™ spray gun is also available. A large variety of options are available to meet all customer requirements.
